(SKM-S30A-PC)
(SKM-S20A-PC) |

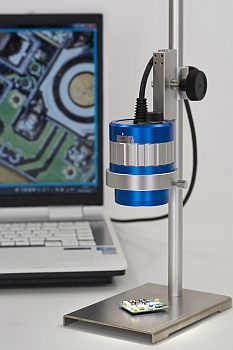

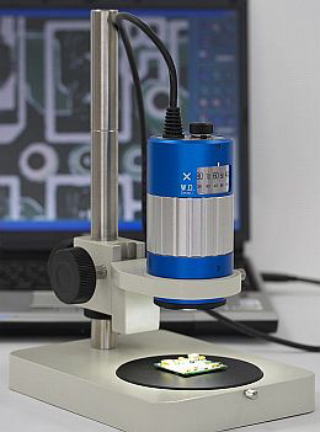

PC Microscope
■Usable on your PC ■Simple connection through USB port ■Image storage on PC
■Wide magnification range ■Attachable to e-mail easely |
| Model |
SKM-S30A-PC |
SKM-S20A-PC |
| Magnification |
15x～180x |
10x～50x |
| Working distance |
126mm～30mm |
178mm～52mm |
| Image detect device |
1/3-inch CMOS image sensor RGB filter |
| Pixel |
1.3 million pixel |
| Resolution |
1280X1024, 640x480 |
| Frame rate |
15fps (1280x1024), 30fps (640x480) |
| Image format |
Windows DirectShow |
| Power source |
Supply through USB connection |
| Illumination |
High intensity white LED, with light intensity volume |
| Optical device |
Lens extrusion system, continuos zooming |
| Stand |
Standard stand with focusing adjustment mechanism |
| Standard software |
Image capture, image storage, distance measurement, angle measuement |
| Requirement on PC |
Windows XP, Vista, 7(32-bit) |
| USB2.0 port (Intell host controller) |
| Intell Over 1.7GHz |
| Over 512MB |
| 24 bit color |
 |

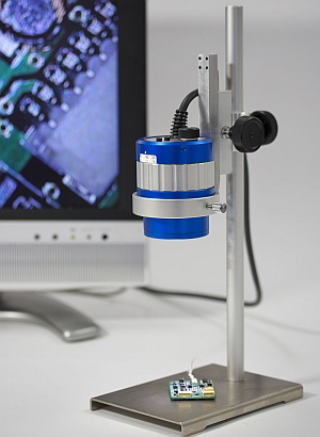

Video Microscope
■Efficient-up in Inspection・Assembly works ■Connectable to standard TV monitor
■Variable from low and high maginication |
| Model |
SKM-S20A-TV |
| Magnification |
10x～50x (On 15-inches monitor) |
| Working distance |
224mm～60mm |
| Image device |
NTSC signal、RCA video output terminal, 1/4 CCD image sensor(Interline) |
| Pixel |
Effective pixel： 768(H)x494(V) Total pixel： 41,000 pixel |
| Power source |
DC5V ±0.2V 0.4A AC adaptor |
| Illumination |
High intensity white LED, with light intensity volume |
| Optical device |
Lens extrusion, continuos zooming |
| Stand |
Standard stang with focus adjustment mechanism |
| Standard accessory |
AC adaptor, Video cable, Dust cover |
| ■Optional accessories |
 |
 |
 |
 |
 |

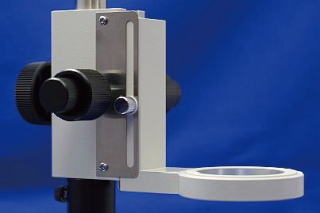

| Long stroke holder 80mm |
Digital XY stage |
Micrometer stage |
Large size stage |

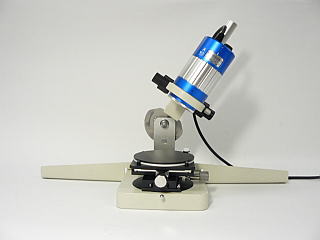

Incline holder |
 |
 |
 |
  |
| Oblique illumination |

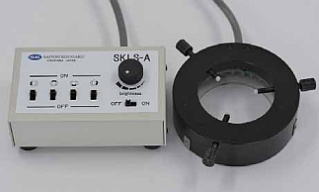

Ring LED illuminator |
Carrying case |
Image measuring, filing software |
■ For other information, please contact us.   To top |
|
