| SMZ1000 Nikon |
| Optical |
Pallarel (Zoom lens) |
| Magnification |
4～480X |
| Eyepieces |
C-W10, C-W15, C-W20, C-W30 |
| Objective |
0.5X, 1X, 1.5X, 2X |
| Zoom range |
0.8～8.0X |
| Zoom ratio |
10:1 |
|
 |
| SMZ800 Nikon |
| Optical |
Pallarel (Zoom lens) |
| Magnification |
5～378X |
| Eyepieces |
C-W10, C-W15, C-W20, C-W30 |
| Objective |
0.5X, 1X, 1.5X, 2X |
| Zoom range |
1～6.3X |
| Zoom ratio |
6.3:1 |
|
 |
| SMZ645 Nikon |
| Optical |
Incline (Zoom lens) |
| Magnification |
4～300X |
| Eyepieces |
C-W10, C-W15, C-W20, C-W30 |
| Objective |
0.5X, 0.7, 1.5X, 2X |
| Zoom range |
0.8～5X |
| Zoom ratio |
6.3:1 |
|
 |
| SMZ-1 Nikon |
| Optical |
Zoom |
| Magnification |
8～60X |
| Eyepieces |
SME10, SME15, SME20, C-W30 |
| Objective |
0.5X, 1X, 1.5X, 2X |
| Zoom range |
0.8～8.0X |
| Zoom ratio |
10:1 |
|
 |
| SZX7 Olympus |
| Optical |
Pallarel (Zoom lens) |
| Magnification |
4～480X |
| Eyepieces |
10X |
| Objective |
0.8X, 1X, 1.25X, 2X, 2.5X, 3.2X
4X, 5X, 5.6X |
| Zoom range |
0.8～5.6X |
| Zoom ratio |
7
|
|
 |
| SZ61 Olympus |
| Optical |
Grenor Optical |
| Magnification |
0.67～4.5X |
| Eyepieces |
110mm |
| Objective |
0.1X, 1.5X, 2X |
| Zoom range |
6.7 |
| Zoom ratio |
10:1 |
|
 |

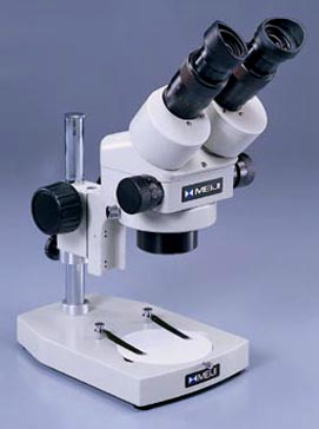

| EMZ-5P/10 Meiji Techno |
| Magnification |
7X～45X |
| Objective |
0.7～4.5X(Zoom ratio 1:6.5) |
| Eyepieces |
SWF10X(Field 23mm) |
| View field |
32.8mm～5.1mm |
| Optical tube |
Standard tube |
| W.D. |
93mm |
| Stand |
Standard pole type |
|
 |
| EMZ-5FS/S4300/305 Meiji Techno |
| Magnification |
7X～45X |
| Objective |
7X～45X(Zoom ration 1:6.5) |
| Eyepieces |
SWF10X(Field 23mm) |
| View field |
32.8mm～5.1mm |
| W.D. |
93mm |
| Stand・Illumination |
Universal stand S-4300
Ring lamp 100V8W6500°K |
|
 |

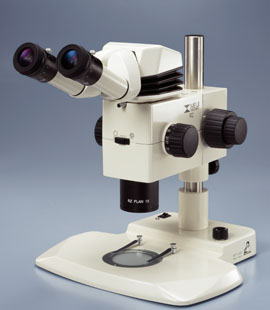

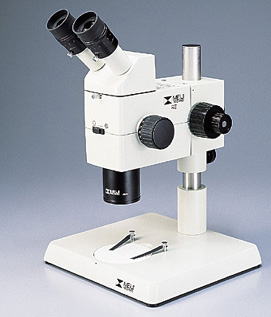

| RZ-1 Meiji Techno |
| Magnification |
7.5X～75X |
| Objective |
Plan achromate 1.0X |
| Eyepieces |
UWF10X(Field 24mm) |
| Body |
RZ body Zoom ration 10:1 |
| Stand |
RZP Standard stand |
|
 |
| RZ-2/RZT-LED Meiji Techno |
| Magnification |
7.5X～75X |
| Objective |
Plan achromate 1.0X |
| Eyepieces |
UWF10X(Field 24mm) |
| Body |
RZ-B body Zoom ration 10::1 |
| Stand |
RZT-LED/ Transmitted(5W) |
|
 |

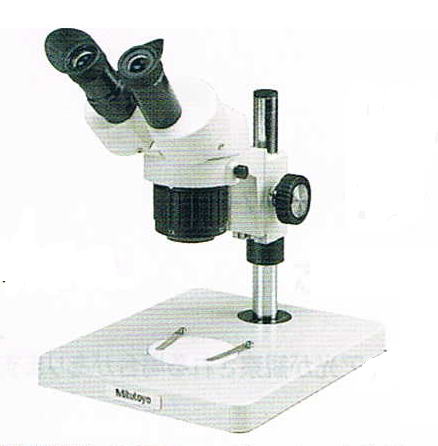

| MSM-412 Mitutoyo |
| Optical |
Erect image |
| Optical tube |
Binouclar, Inclined 45° |
| Mag. change |
Turret change/2 step |
| Objective |
1X, 2X |
| Eyepieces |
WF10X(Standard), WF5X, 15X, 20X |
| Magnification |
10X, 20X |
| W.D. |
95mm |
|
 |

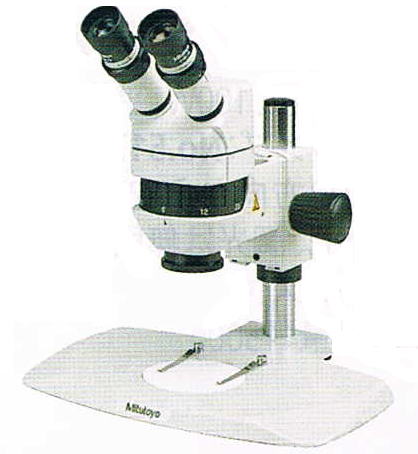

| MSM-Z414 Mitutoyo |
| Optical |
Erect image |
| Optical tube |
Binocular, Inclined 45° |
| Mag. change |
Zoom |
| Objective |
1X～4X(Zoom ratio 1:4) |
| Eyepieces |
WF10X(Standard), WF5X, 15X, 20X |
| Magnification |
10X～40X |
| W.D. |
80mm |
|
 |

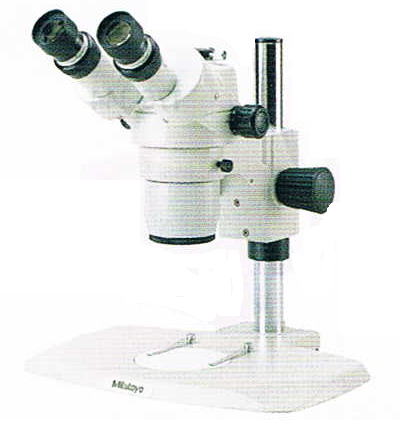

| MSM-Z475T Mitutoyo |
| Optical |
Erect image |
| Optical tube |
Trinocular(TV-port) Inclined 35° |
| Mag. change |
Zoom |
| Objective |
0.75X～5X(Zoom ration 1:6.6) |
| Eyepieces |
WF10X(Standard), WF5X, 15X, 20X |
| Magnification |
7.5X～50X |
| W.D. |
113mm |
|
 |

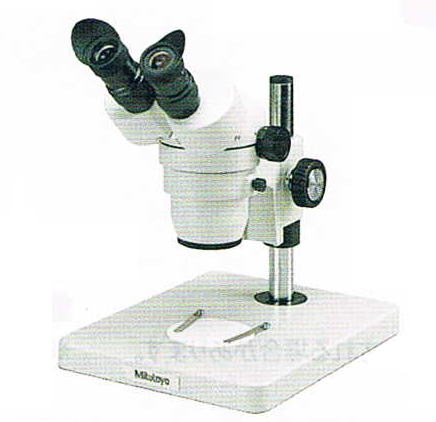

| MSM-465 Mitutoyo |
| Optical |
Erect image |
| Optical tube |
Binocular, Inclined 45° |
| Mag. change |
Turret change/4 step |
| Objective |
0.6X, 1.2X, 2.5X, 5X |
| Eyepieces |
WF10X(標準)6.25X,15X,20X,32X |
| Magnification |
6X, 12X, 25X, 50X |
| W.D. |
89mm |
|
■If not listed in the above, please contact us.   To top |
|
